DrainSmart

DrainSmart™ Wireless Drain Switch

Prevent Overfilling and Overflowing… with DrainSmart

The DrainSmart wireless drain switch system is an innovative device designed to help homeowners, property managers, builders and maintenance companies with the challenges of maintaining water levels in pools, spas, ponds, water features, and tanks.

Based on the same technology as the advanced LevelSmart™ wireless autofill system from H2flow Controls, DrainSmart eliminates the risk of overfilling and overflowing swimming pools and other bodies of water. With 24-hour-per-day wireless monitoring, DrainSmart automatically maintains the desired water level in any body of water.

KEY FEATURES

  • Prevents against the risk of overfilling and overflowing

  • No pool deck damage or construction required

  • Simple installation

  • Up to 1,000 ft. of wireless communication

  • Installs to new or existing applications

  • Precision water adjustment

  • Discrete wireless sensor

  • No maintenance after installation

  • Protected by U.S. Patent Number 9,410,336 B2

Where to Buy

LevelSmart is available online and at most swimming pool retailers and distributors.

For ordering information, please contact us.

A patented design

DrainSmart’s utilizes a proprietary sensing method, which is protected by U.S. Patent Number 9,410,336 B2.

HOW IT WORKS

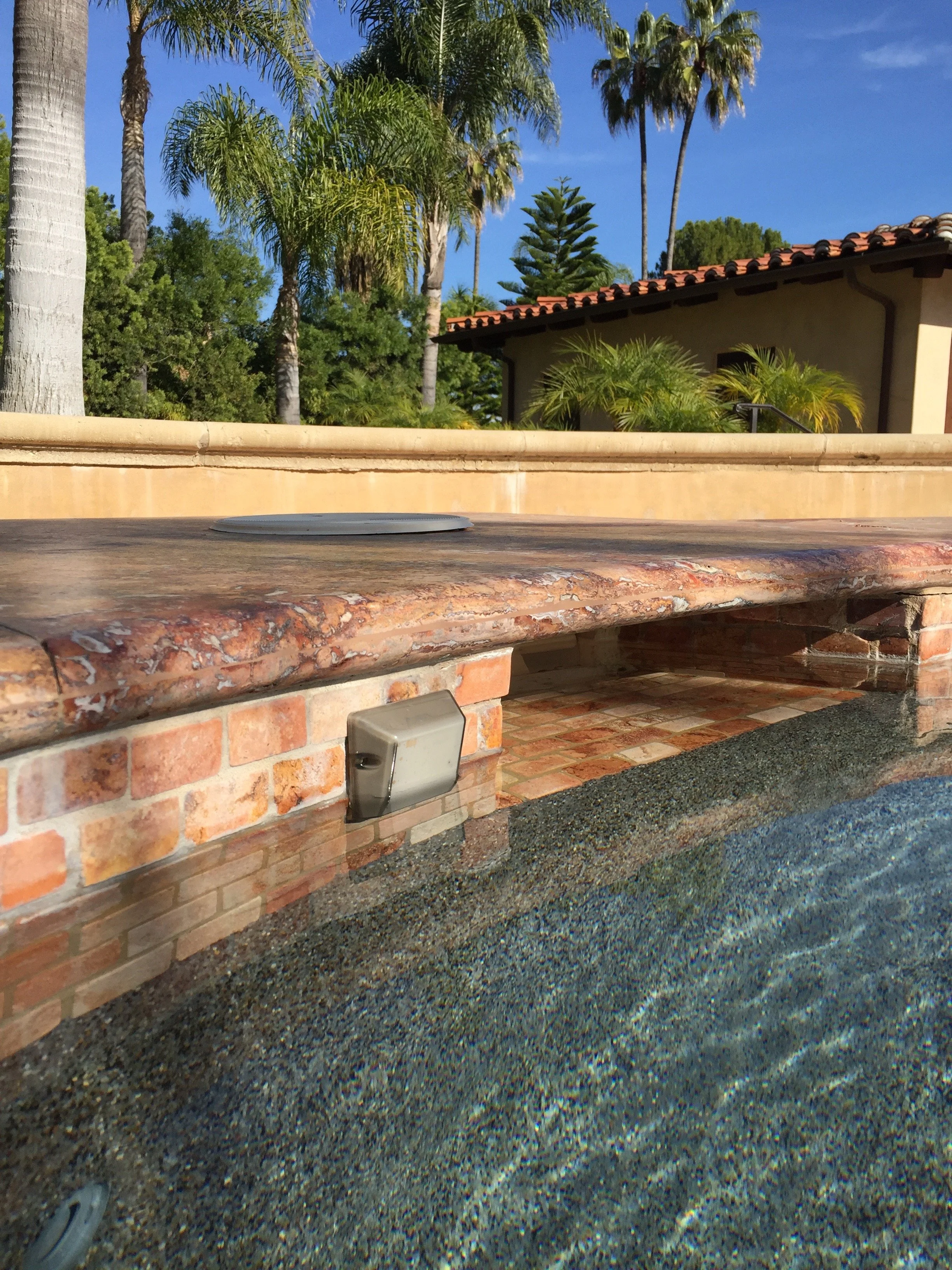

Positioned above the desired water level within the pool, the DrainSmart sensor wirelessly communicates with the DrainSmart valve controller to perform operation of an automatic valve. The DrainSmart sensor will wake up every 30-minutes, check that the current water level is not above the desired level and if necessary, wirelessly communicate the information to the valve controller. When necessary, the controller will open the valve and drain for 7-minutes. The sensor will continue to check the water level every 30-minutes.

Product Literature

Quick Start Guide: English

Product Brochure: English

Technical Data

Specifications
Environmental Factory-sealed batteries and electronics
Valve 24VAC valve
Maximum Operating Temperature 130°F / 54°C
Minimum Operating Temperature 40°F / 4°C
Monitoring Cycles 7-minutes per 30-minutes
Communication 1,000 feet max. of 433MHz interference free, radio communication
Dimensions

Valve Controller (HxW): 3" x 3" (7.6cm x 7.6cm); total width 4.07" (10.34cm), screw holes 3.55" (9cm) center-to-center

Level Sensor (HxW): 2.85" x 2.9" (7.24cm x 7.37cm)

Valve (HxWxL): 5" x 4.5" x 2.5" (13cm x 11cm x 6cm)

Valve Controller Cables: 24VAC Power Cable, 55" (140cm); 24VAC Control Cable, 55" (140cm)

DrainSmart IN YOUR INDUSTRY

Pool and Spa

Prevent overfilling and overflowing, with the DrainSmart wireless drain switch. Designed to help meet the challenges of water level maintenance.
