Eco-flow®
ECO-FLOW AQUATIC AC DRIVES
Built for Purpose

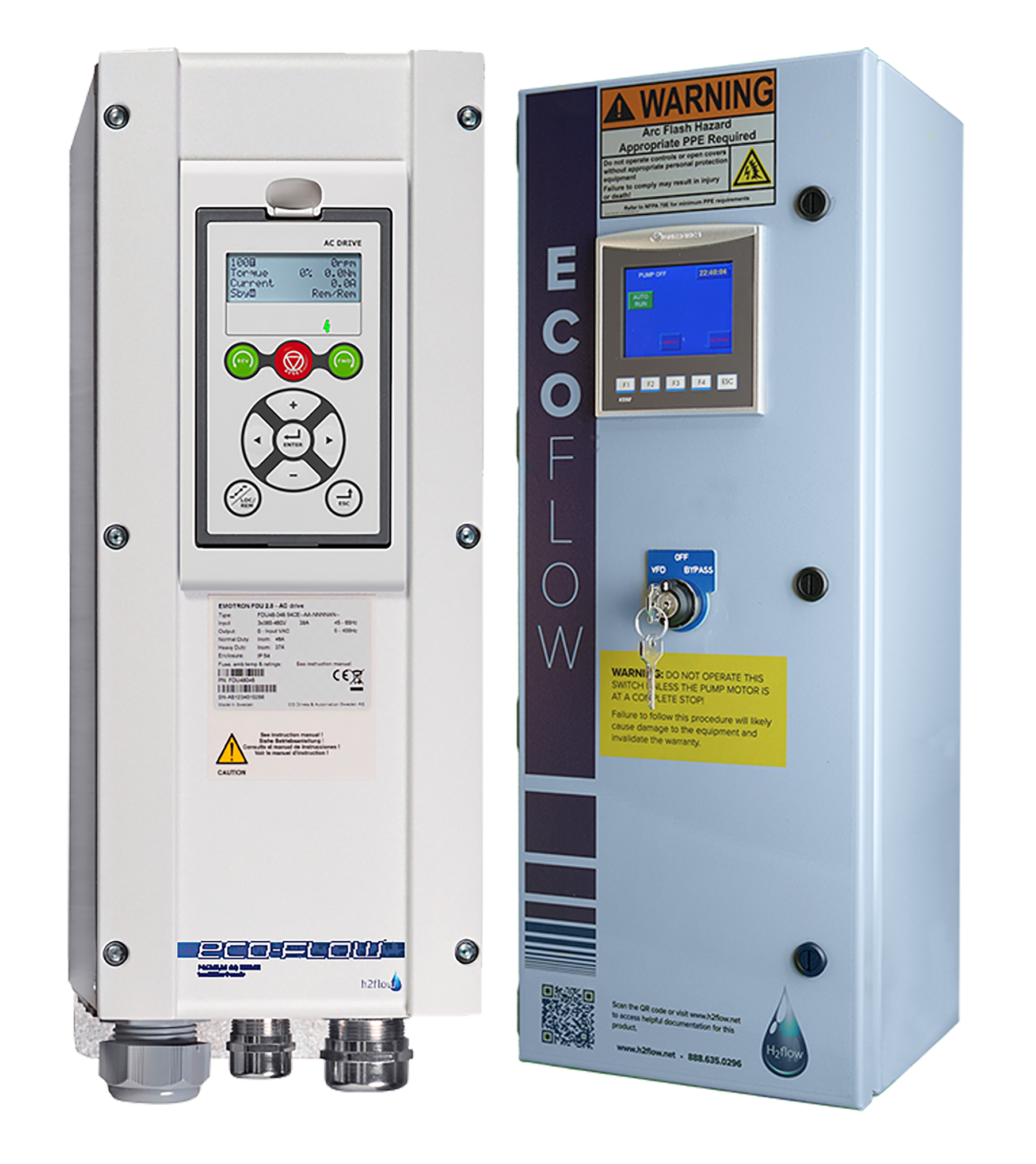

Eco-Flow®-C and Eco-Flow®-F Aquatic Variable Frequency Drives from H2flow are ideal for the hostile environment of a pool equipment room. Its unique Aquatic Controller provides simplified setup for improved user-friendliness and its rugged NEMA 12 configuration offers durability for even the most unforgiving commercial pool room environments.
Aquatic Controller
Using a vivid color touch screen display, the Eco-Flow’s unique Aquatic Controller provides an unrivaled user experience. Programming the VFD is achieved by simply answering a few simple questions. Day-to-day operation such as pump start, pump stop and backwash speed control are initiated with a simple push of a related command on the screen. With the inclusion of the Eco-Flow’s optional Flow Transducer, the Aquatic Controller even provides a digital readout of flow (GPM).
eco-flow FEATURES & BENEFITS
Models for pool and spa optimization (Eco-Flow-C) and fountain control (Eco-Flow-F)
Rugged 3/4 die-cast aluminum body with NEMA 12 construction for durability
Aquatic Controller for simple operation yet sophisticated capability
Multiple programming options for optimal energy and system efficiency
Patented Load Curve Monitoring protects the pump and system from inadvertent events, i.e., power fluctuations, loss of prime, closed suction / discharge valves, dead heading, worn impeller detection, over load, under load conditions
I/O capacity for integration with other mechanical room equipment
BMS (Building Management System) capable for monitoring and control
Optional Bypass Control with integrated Aquatic Controller
Live local and national support for prompt assistance if needed
WHERE TO BUY
Eco-Flow Aquatic Variable Frequency Drives are available from these authorized partners. For more information, click on the linked logos below, or contact us.
| Specifications | |
|---|---|
| Installation Environment | Indoor, wash down, corrosive gases possible |
| Supply Voltage | 3 x 208/230VAC, ±10% / 3 x 480VAC, ±15% |
| HP Range | 1 - 1,500HP |
| Protection Class | IP54 / NEMA 12 |
| Operating Temperature | 32 - 104°F (122°F with de-rating |
| Output Frequency | 0.01 - 120Hz |
| Relative Humidity | 90% or less |
| Maximum Altitude without De-Rating | 3,280 ft. de-rate by 1% every 328 ft. over this. Max. 13,128 ft. |
| Output Voltage | 0 - Mains Supply Voltage |
| Rated Output Current | Current rating of VFD, 120% overload for one-minute |
| VFD Efficiency at Nominal Load | 97% |
| Speed Control | via Eco-Flow Controller. Programmable speeds based on time or constant flow. |
| Comm. Protocol between Eco-Flow and Controller | Modbus |
Eco-Flow in your industry
Pool and Spa
Eco-Flow drives for commercial pools, spas, fountains and water features reduce operating costs and optimize efficiency.
Get in touch.
Want more information about our Eco-Flow Variable Frequency Drives? Please, drop us a line… we’re here to help!
