FlowVis®

FlowVis flow meters

A revolution in flow measurement

Ingenious in concept and flawless in operation, FlowVis® flow meters have been revolutionizing the way flow is measured in pool and spa applications since their inception in 2012.

With unrivaled accuracy, greater installation flexibility, and more NSF 50 certified models than any other brand, it’s easy to see why FlowVis® is the flow meter of choice for pool and spa professionals everywhere.

Looking for a similar flow meter solution for industrial applications? Click here to learn about our AcuFlow flow meter.

KEY FEATURES

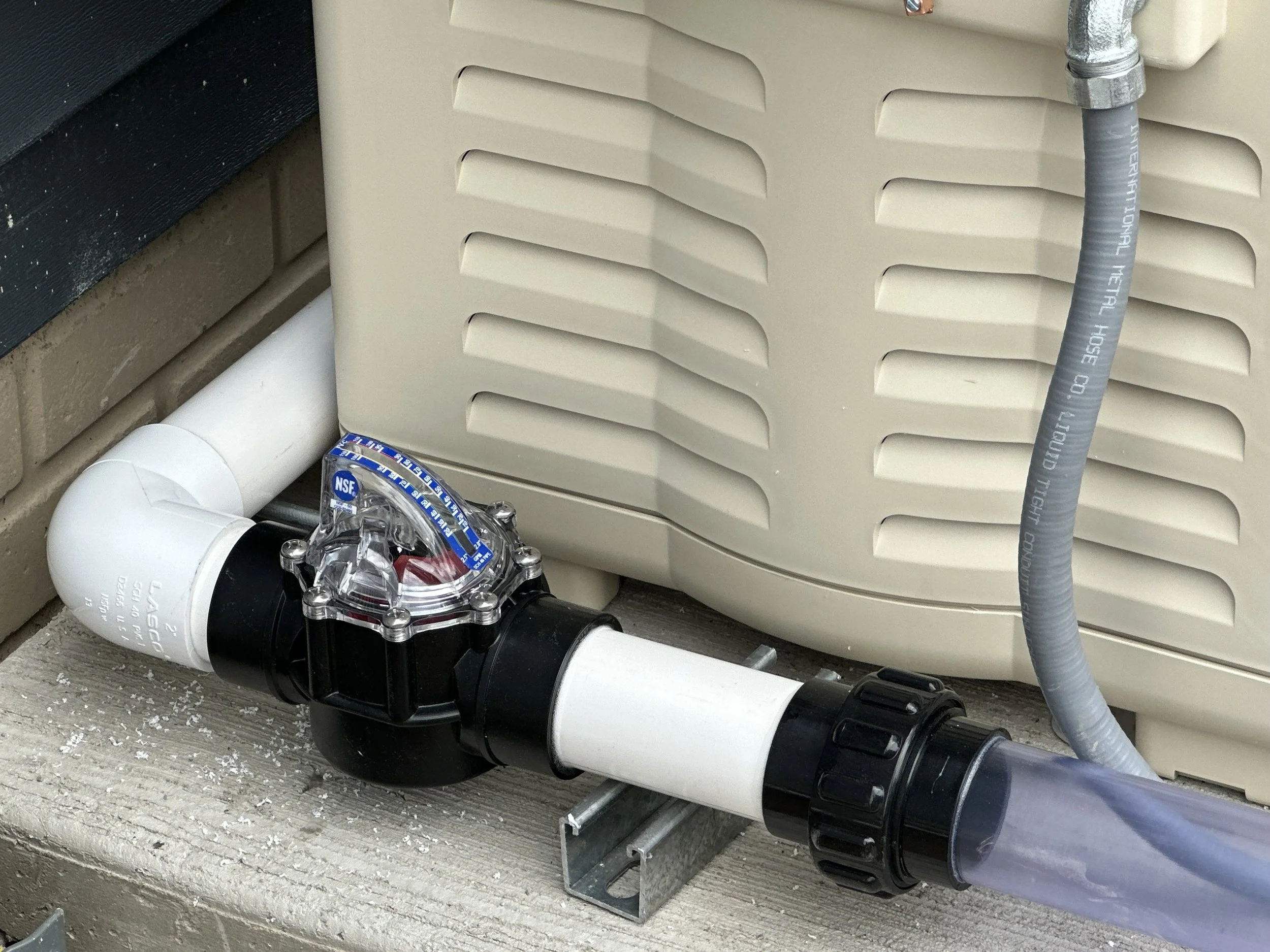

  • Installation flexibility; installs horizontally, vertically, or even upside-down

  • Can be installed with little-to-zero straight pipe requirements with no effect on accuracy

  • ≥98.1% accuracy across the entire model range

  • Models available for 1.5” - 8” and metric units for DN80 - DN200

  • More NSF 50 certified models than any other brand of flow meter

  • Doubles as a check valve (1.5”, 2”, and 2.5” models)

  • Digital upgrade (model FV-D) available for all FlowVis models

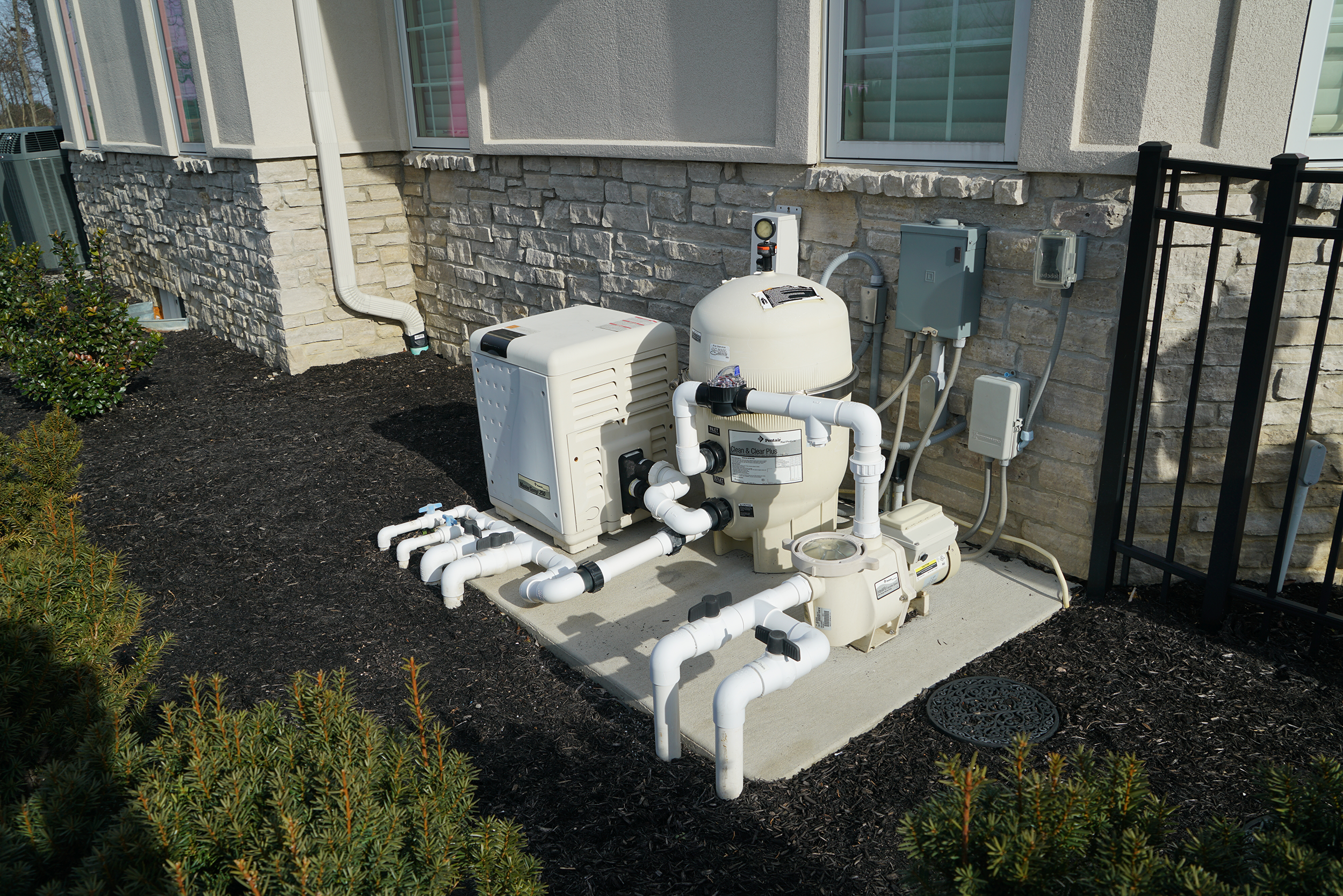

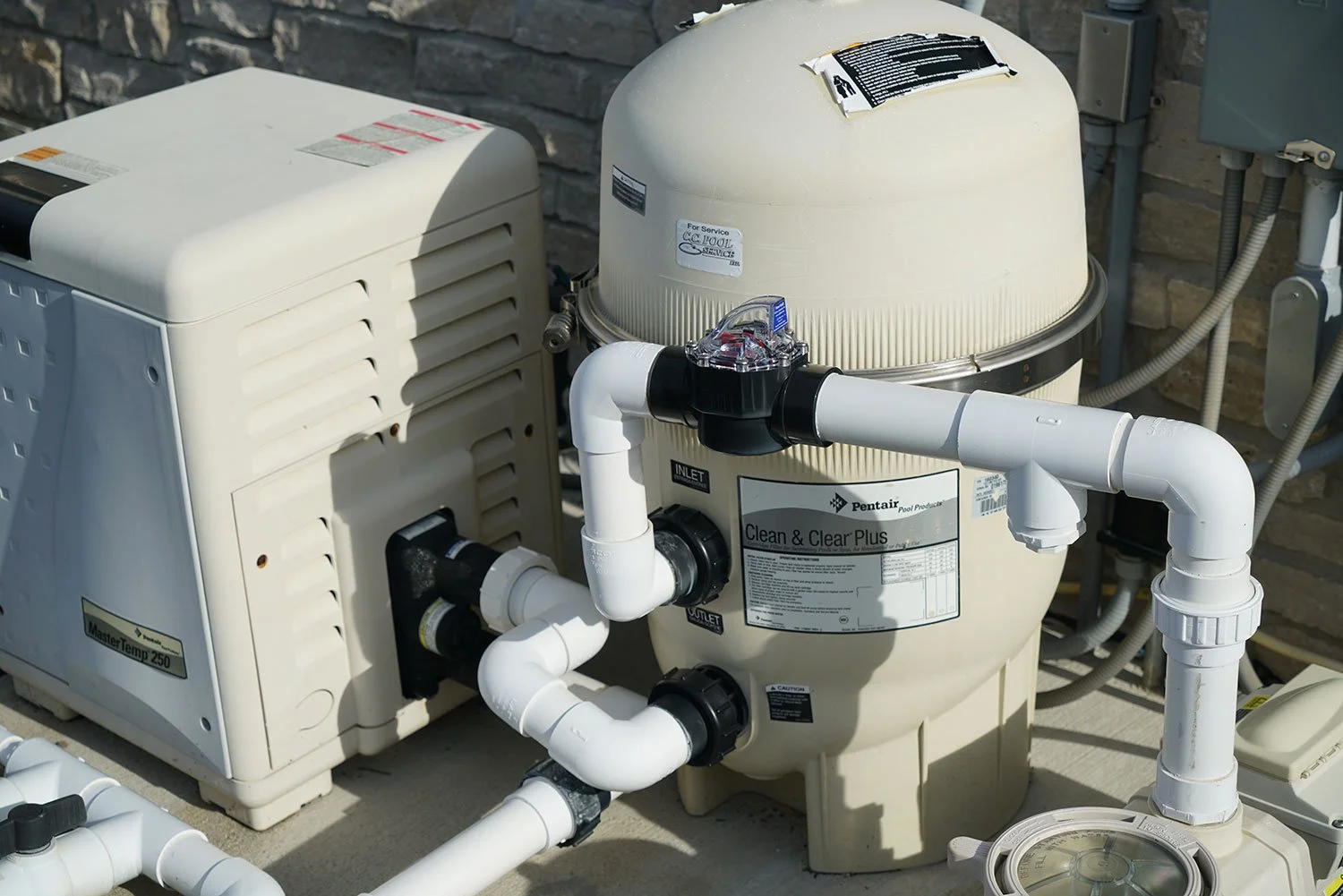

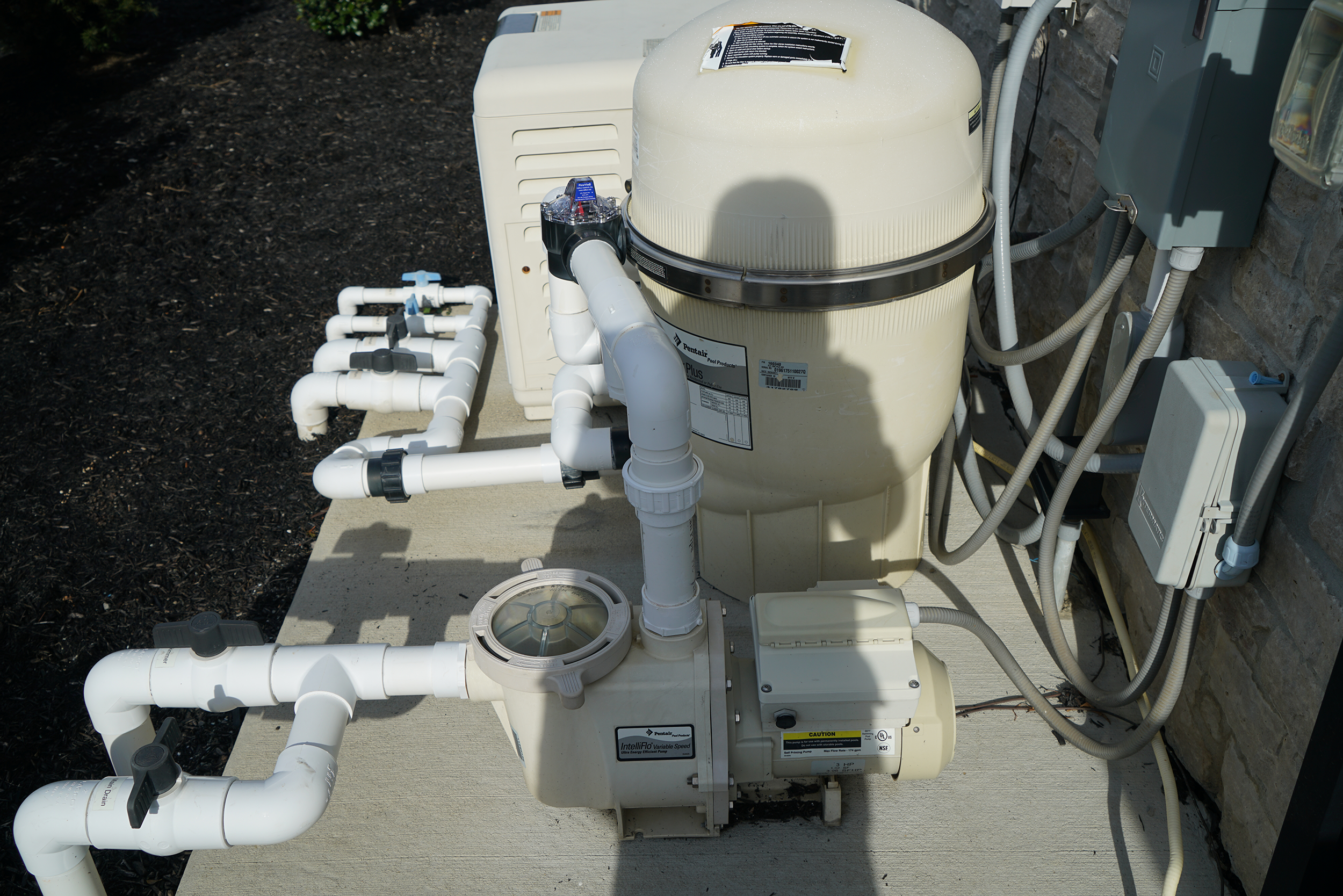

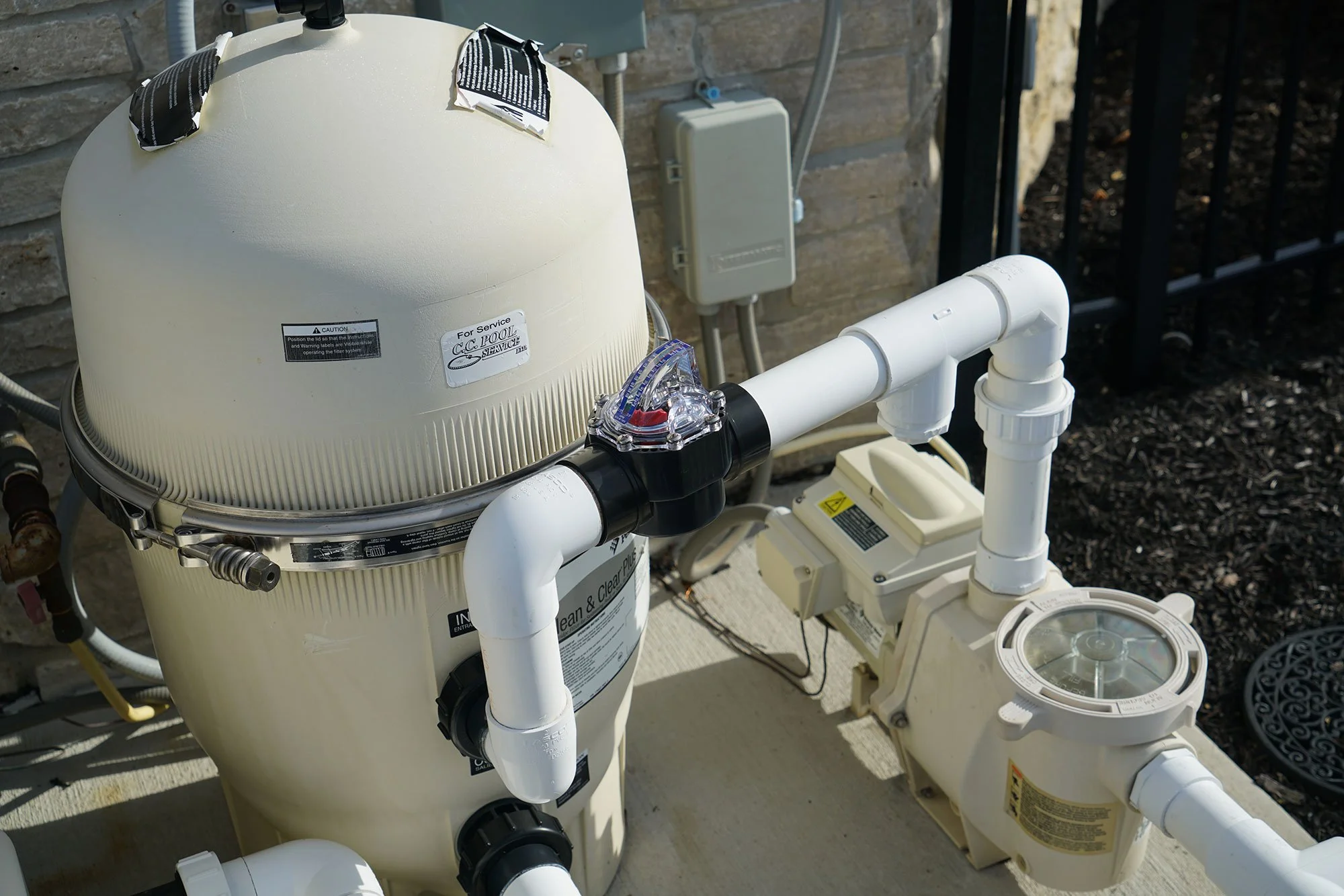

  • The first and only flow meter for pools and spas to be certified for outdoor use

  • Clear, easy-to-read scale in GPM or optional LPM or m3/h

  • Installs quickly and easily with no calibration required

  • Manufactured in the USA

  • 15-year design life, 3-year warranty

Where to Buy

FlowVis is available online and at most swimming pool retailers and distributors.

For ordering information, please contact us.

More than a flow meter

FlowVis® is so much more than just a highly accurate flow meter. Models for 1.5” (DN40), 2” (DN50), and 2.5” (DN65) also provide the user with the benefit of check valve functionality. Additionally, models for 1.5” - 8” feature a readout of velocity in feet per second. These are just a couple of examples of why FlowVis has earned multiple awards such as Pool & Spa News Top 50 Products of 2021.

Product Literature

FlowVis, FlowVis Digital Product Brochure (Imperial): English

FlowVis, FlowVis Digital Product Brochure (Metric): English | Spanish

FlowVis Instruction Manual (Imperial): English

FlowVis Instruction Manual (Metric): Multilingual (EN, DE, ES, IT, FR, NL)

FlowVis Head Loss Data (Imperial): English

FlowVis Digital Instruction Manual (Imperial): English

FlowVis Digital Instruction Manual (Metric): English

FlowVis Service Repair Kit Instructions: English

FlowVis Certificate of Warranty: English

Technical Data
Specifications
Pipe Diameter 1.5", 2", 2.5", 3", 4", 6", 8", DN40, DN50/65, DN80, DN100, DN150, DN200
Average Accuracy ≥98.1% across the entire model range
Pressure Rating 50 psi
Warranty 15-year design life, 3-year warranty
Approvals NSF 50 certified
Head Losses Please refer to product manual


Upgrade to FlowVis Digital

Unlock the full potential of the FlowVis flow meter by ugrading to the FlowVis Digital.

FlowVis Digital provides the user with remote indication via an LCD display, visual alarms at user-defined set points, provides pool turnover rate information, allows the user to operate external equipment at user-defined flow rates, and more.

If you’re already using FlowVis Digital, access the many unique features by installing the FlowVis Digital APM Configurator software. To do so, click the button below. Step-by-step instructions on how to use the APM Configurator software can be found in the FlowVis Digital instruction manual.

  • • Installs quickly and easily to existing FlowVis models

    • Retrofittable with the following analog units: FV-15; FV-15-U; FV-2; FV-2-U; FV-25; FV-3; FV-4; FV-6; FV-8; FV-15-L; FV-15-U-L; FV-2-L; FV-2-U-L; FV-3-L; FV-4-L; FV-6-L; FV-8-L; FV-DN40; FV-DN50/65; FV-DN80; FV-DN100; FV-DN150; FV-DN200

    • Pool Turnover Rate functionality

    • Ability to interface with a multitude of external equipment

    • >98% accuracy

    • Ability to set flow rate alarms

    • Offers remote indication of flow

    • Manufactured in the USA

    3-year warranty

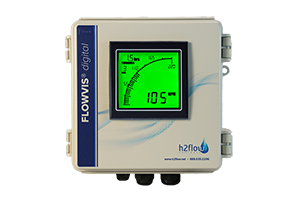

  • DISPLAY ENCLOSURE

    Enclosure Material: ABS

    Rating: NEMA 4X / IP66

    Dimensions (HxWxD): 6” x 6” x 3.5” (152mm x 152mm x 90mm)

    Mounting Brackets: Stainless Steel

    DISPLAY

    Display: LCD

    Backlight Colors: Red, Green, White

    Display Cable with Socket: 138” (3.5M) long

    SENSOR

    Sensor Housing Material: Polycarbonate (clear)

    Molded Cable with Plug: 20” (0.5M) long

    DISPLAY TO SENSOR EXTENSION CABLE (OPTIONAL)

    Pre-formed with Attached Plug and Socket: 25ft. (7.62M) long

    POWER SUPPLY

    Power Connection: Receptacle Style

    Power Source: 120-240VAC, 0.5 Amps

    Power Output: 12 VDC, 1.0 Amps

    Low Voltage Cable Length: 10’ (3M)

    AUXILIARY RELAY

    Output Contacts: Double pole, double throw form C dry contacts

    Contact Ratings: 20A Max.

    Relay Coil: 12VDC (Sourced and Controlled by the Display)

    ANALOG OUTPUT (4-20MA)

    Scaled to: 4mA - zero flow, 20mA - max flow rate limit of installed FlowVis

    Output Format: Voltage sourced from FlowVis Digital display

    Maximum Load: 250 Ohms

    ACCURACY

    Flow Rate Accuracy: >98% for all FlowVis models

    ENVIRONMENTAL

    Operating Temperature: 32 - 122°F (0 - 50°C)

    Storage Temperature: -4 - 140°F (-20 - 60°C)

  • FV-3-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-3. Scale in GPM. Required for all existing ‘pre-Oct.2020’ FV-3 installations.

    FV-4-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-4. Scale in GPM. Required for all existing ‘pre-Oct.2020’ FV-4 installations.

    FV-6-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-6. Scale in GPM. Required for all existing ‘pre-Oct.2020’ FV-6 installations.

    FV-8-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-6. Scale in GPM. Required for all existing ‘pre-Oct.2020’ FV-6 installations.

    FV-3-LA-L: Exchange lid assembly for Digital upgrade for FlowVis model FV-3-L. Scale in LPM. Required for all existing ‘pre-Oct.2020’ FV-3-L installations.

    FV-4-LA-L: Exchange lid assembly for Digital upgrade for FlowVis model FV-4-L. Scale in LPM. Required for all existing ‘pre-Oct.2020’ FV-4-L installations.

    FV-6-LA-L: Exchange lid assembly for Digital upgrade for FlowVis model FV-6-L. Scale in LPM. Required for all existing ‘pre-Oct.2020’ FV-6-L installations.

    FV-8-LA-L: Exchange lid assembly for Digital upgrade for FlowVis model FV-6-L. Scale in LPM. Required for all existing ‘pre-Oct.2020’ FV-6-L installations.

    FV-DN80-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-DN80. Scale in m3/h. Required for all existing ‘pre-Oct.2020’ FV-DN80 installations.

    FV-DN100-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-DN100. Scale in m3/h. Required for all existing ‘pre-Oct.2020’ FV-DN100 installations.

    FV-DN150-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-DN150. Scale in m3/h. Required for all existing ‘pre-Oct.2020’ FV-DN150 installations.

    FV-DN200-LA: Exchange lid assembly for Digital upgrade for FlowVis model FV-DN200. Scale in m3/h. Required for all existing ‘pre-Oct.2020’ FV-DN200 installations.

    FVD-EC: Display extension cable; 26.25ft. (8 meters)

    FVD-RK: Relay interface kit

chemical feed interlock requirements

Use FlowVis Digital to interface to chemical feed systems to prevent their unintentional operation during a low or zero flow condition. The only NSF 50 certified digital flow meter is your answer to meeting the demands of a growing number of States that require chemicals not be injected in a no flow situation.

FlowVis Digital

Available models

FlowVis® models are available in imperial and metric sizes with scales reading GPM, LPM and m3/h. Browse our models below to find the FlowVis that’s right for your application.

  • FV-15: FlowVis model with GPM scale for 1.5” pipe. Includes check valve functionality, velocity scale and NSF 50 certification.

    FV-15-U: FlowVis model with GPM scale and union fittings for 1.5” pipe. Includes check valve functionality, velocity scale and NSF 50 certification.

    FV-2: FlowVis model with GPM scale for 2” pipe. Includes check valve functionality, velocity scale and NSF 50 certification.

    FV-2-U: FlowVis model with GPM scale and union fittings for 2” pipe. Includes check valve functionality, velocity scale and NSF 50 certification.

    FV-25: FlowVis model with GPM scale for 2.5” pipe. Includes check valve functionality, velocity scale and NSF 50 certification.

    FV-C: FlowVis model with GPM scale for 2 x 2.5” pipe. Includes check valve functionality and NSF 50 certification (discontinued).

    FV-3: FlowVis model with GPM scale for 3” pipe. Includes velocity scale and NSF 50 certification.

    FV-3-40: FlowVis model with GPM scale for 3” - SCH40 pipe. Includes velocity scale and NSF 50 certification.

    FV-4: FlowVis model with GPM scale for 4” pipe. Includes velocity scale and NSF 50 certification.

    FV-6: FlowVis model with GPM scale for 6” pipe. Includes velocity scale and NSF 50 certification.

    FV-8: FlowVis model with GPM scale for 8” pipe. Includes velocity scale, NSF 50 certification and FlowVis Digital.

    FV-C-S: FlowVis model with GPM scale and safety flapper for 2” pipe. Includes NSF 50 certification.

    FV-C-Saline: FlowVis model with GPM scale for 2” pipe. For use on flotation tank applications.

    FV-C-HF-S: FlowVis model with GPM scale for 2.5” pipe. For high flow applications.

    FVJ-R-15: FlowVis model with GPM scale for for retrofit to existing 1.5” Jandy® valve bodies.

    FVH-R-15: FlowVis model with GPM scale for for retrofit to existing 1.5” Hayward® valve bodies.

    FVP-R-15: FlowVis model with GPM scale for for retrofit to existing 1.5” Praher® valve bodies.

    FVJ-R: FlowVis model with GPM scale for for retrofit to existing 2 x 2.5” Jandy® valve bodies.

    FVH-R: FlowVis model with GPM scale for for retrofit to existing 2 x 2.5” Hayward® valve bodies.

    FVP-R: FlowVis model with GPM scale for for retrofit to existing 2 x 2.5” Praher® valve bodies.

  • FV-15-L: FlowVis model with LPM scale for 1.5” pipe. Includes check valve functionality and NSF 50 certification.

    FV-2-L: FlowVis model with LPM scale for 2” pipe. Includes check valve functionality and NSF 50 certification.

    FV-25-L: FlowVis model with LPM scale for 2.5” pipe. Includes check valve functionality and NSF 50 certification.

    FV-C-L: FlowVis model with LPM scale for 2 x 2.5” pipe. Includes check valve functionality and NSF 50 certification (discontinued).

    FV-3-L: FlowVis model with LPM scale for 3” pipe. Includes NSF 50 certification.

    FV-3-40-L: FlowVis model with LPM scale for 3” - SCH40 pipe. Includes NSF 50 certification.

    FV-4-L: FlowVis model with LPM scale for 4” pipe. Includes NSF 50 certification.

    FV-6-L: FlowVis model with LPM scale for 6” pipe. Includes NSF 50 certification.

    FV-8-L: FlowVis model with LPM scale for 8” pipe. Includes NSF 50 certification and FlowVis Digital.

    FV-C-S-L: FlowVis model with LPM scale and safety flapper for 2” pipe. Includes NSF 50 certification.

    FV-C-L-Saline: FlowVis model with LPM scale for 2” pipe. For use on flotation tanks/saline applications.

    FVJ-R-15-L: FlowVis model with LPM scale for for retrofit to existing 1.5” Jandy® valve bodies.

    FVH-R-15-L: FlowVis model with LPM scale for for retrofit to existing 1.5” Hayward® valve bodies.

    FVP-R-15-L: FlowVis model with LPM scale for for retrofit to existing 1.5” Praher® valve bodies.

    FVJ-R-L: FlowVis model with LPM scale for for retrofit to existing 2 x 2.5” Jandy® valve bodies.

    FVH-R-L: FlowVis model with LPM scale for for retrofit to existing 2 x 2.5” Hayward® valve bodies.

    FVP-R-L: FlowVis model with LPM scale for for retrofit to existing 2 x 2.5” Praher® valve bodies.

  • FV-C-M-DN40: FlowVis model with m3/h scale for DN40 pipe. Includes check valve functionality.

    FV-C-M-DN50/65: FlowVis model with m3/h scale for DN50/65 pipe. Includes check valve functionality.

    FV-C-M-DN80: FlowVis model with m3/h scale for DN80 pipe.

    FV-C-M-DN100: FlowVis model with m3/h scale for DN100 pipe.

    FV-C-M-DN150: FlowVis model with m3/h scale for DN150 pipe.

    FV-C-M-DN200: FlowVis model with m3/h scale for DN200 pipe.

  • FV-SK: FlowVis Service Repair Kit suitable for all models 1.5” - 2.5” / DN40 - DN50/65, with check valve functionality. Comprises: o-ring, flapper, spring and pivot pin.

    FV-SK-CAR: FlowVis Service Repair Kit suitable for 3” - 8” / DN80 - DN200 models. Comprises: spring, o-ring, spring pulley pivot pin, spring pulley to flapper pulley wire.

FlowVis IN YOUR INDUSTRY

Pool and Spa

With >98% accuracy and an array of features and benefits, FlowVis is the flow meter of choice for Pool & Spa professionals everywhere.
