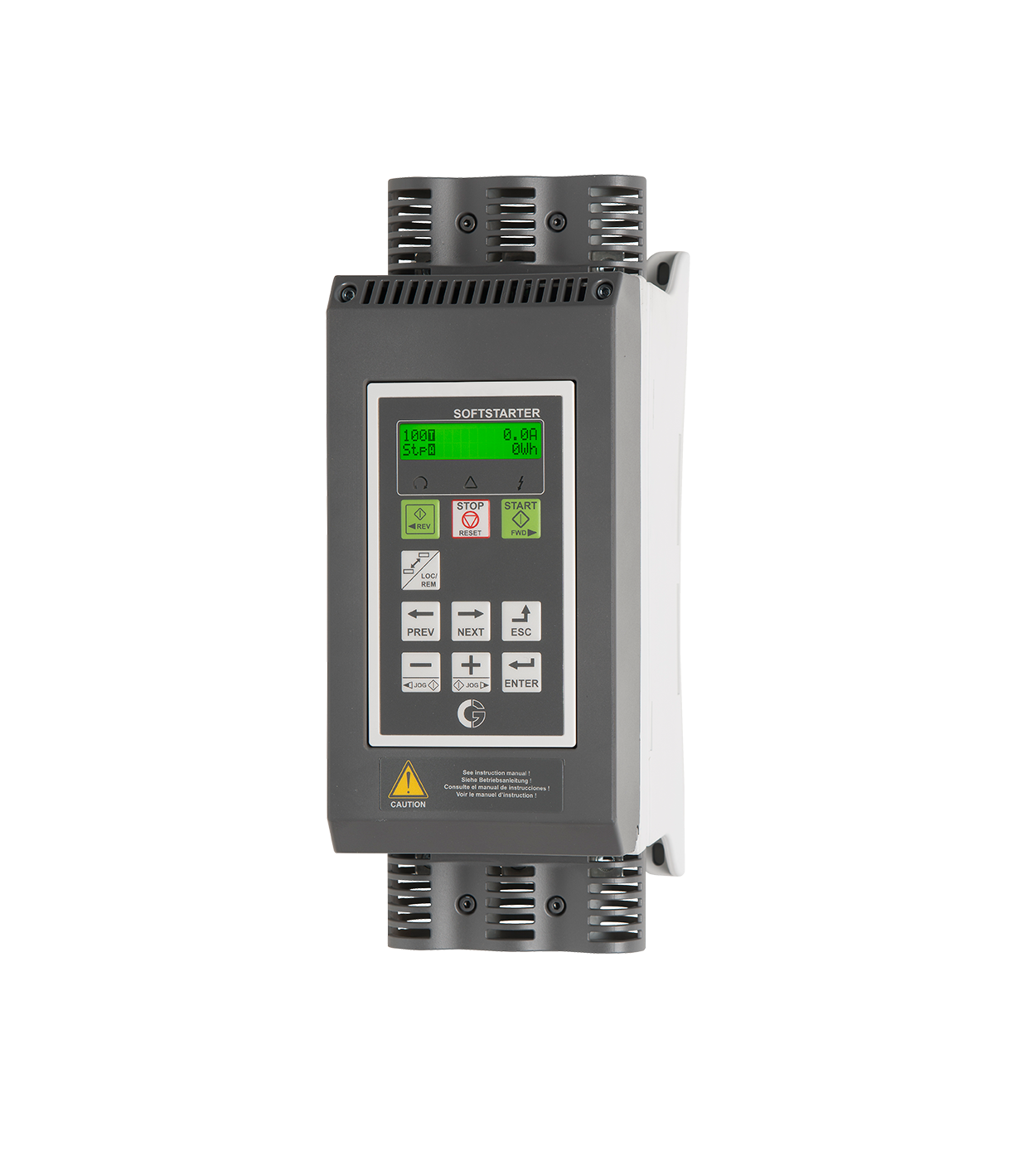

TSA Soft Starts

Intelligent Control in a Small Package

Emotron TSA Soft Starts take motor control to a new level. Soft torque starting, intelligent load monitoring, and smart stops are all included and accompanied by a robust and compact design. The TSA Soft Start is developed for pump, fan, compressor, blower, crusher, conveyor, mill, mixer, and saw applications.

KEY FEATURES

Intelligent shunt-rated bypass contactor
Torque ramp with current limit
Motor load monitoring with auto-set of alarm levels
Programmable logic and timer functions with Real Time Clock
Multilingual control panel with single-function keys and copy function
Compact dimensions
Conformal coated circuit boards
Slow speed and jog operation
Smart stops with built-in braking functionality

Starting currents reduced by +20% versus reduced voltage soft starts

Smooth starts reduce your costs

Adjusting the motor torque is best done by controlling the current in all three phases. Three-phase control offers symmetrical and balanced currents without the drawbacks of additional energy losses, noise and vibration normally connected with 2-phase soft starters.

Emotron TSA Soft Starts incorporate 3-phase control together with sophisticated algorithms for torque control. Conventional Soft Starts use a pre-defined voltage ramp to control the start. With Emotron TSA, the actual motor torque is continuously calculated and controlled according the the application requirements. This torque control ensures an ultra-smooth start with constant acceleration. The torque control means the starting current is reduced even further by up to 20%. You can use smaller fuses and less expensive cables, and will thus benefit from lower installation and energy costs. The smooth starts also lead to less mechanical stress, improved process control and reduced maintenance costs.

Product Literature

TSA Product Brochure: English

TSA Technical Catalog: English

TSA Instruction Manual: English

Technical Data

Specifications
Rated Power	7.5 - 1,800kW
Supply Voltage	100-240VAC, 1-phase 200-525VAC, 3-phase
Control Supply	100-240VAC, 1-phase
Rated Current	17 - 1,800A
Protection Class	NEMA Type Open / IP20 (up to 800A) NEMA Type Open / IP00 (1,000 to 1,800A)
Approvals	CE, UL, cUL, DNV, EAC
